Kubevirt Bridge + ovs 网络动手实验

在 bridge 模式下，虚拟机通过 Linux Bridge 连接到 QEMU virtio 设备。virt-launcher Pod 的 IP 地址通过 DHCP 委派给虚拟机。虚拟机应配置为使用 DHCP 获取 IP 地址（virt-launcher Pod 的 IP 和 MAC 地址被移动到 KubeVirt 虚拟机内部，所以 virt-launcher Pod 网卡就没有 IP 和 MAC 地址了）。

在虚拟机外部，Node 通过 Open vSwitch 技术，将 virt-launcher Pod 与 Node 连接，实现网络互通。阅读本文前，请先完成跨主机通信 Open vSwitch 动手实验。

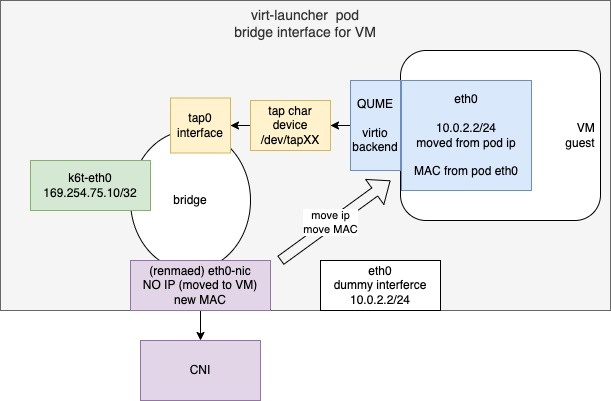

下图是 KubeVirt Bridge 模式下 virt-launcher Pod 与 KubeVirt 虚拟机的网络拓扑图。

动手实验

1. 完成跨主机通信 Open vSwitch 动手实验

2. 使用 bridge.yaml 创建虚拟机：

   apiVersion: kubevirt.io/v1
   kind: VirtualMachine
   metadata:
     name: bridge-ovs
   spec:
     dataVolumeTemplates:
     - metadata:
         name: systemdisk-bridge-ovs
       spec:
         pvc:
           accessModes:
           - ReadWriteOnce
           resources:
             requests:
               storage: 10Gi
           storageClassName: local-path
         source:
           registry:
             url: docker://release-ci.daocloud.io/virtnest/system-images/centos-7.9-x86_64:v1
     runStrategy: Always
     template:
       metadata:
         annotations:
           ipam.spidernet.io/ippools: '[{"interface":"eth0","ipv4":["vlan40-v4"]}]'
       spec:
         architecture: amd64
         domain:
           cpu:
             cores: 1
             model: host-model
             sockets: 2
             threads: 1
           devices:
             disks:
             - disk:
                 bus: virtio
               name: systemdisk-bridge-ovs
             - disk:
                 bus: virtio
               name: cloudinitdisk
             interfaces:
             - bridge: {}
               name: ovs-bridge1
             - bridge: {}
               name: ovs-bridge2
           features:
             acpi:
               enabled: true
           machine:
             type: q35
           resources:
             requests:
               memory: 1Gi
         networks:
         - multus:
             default: true
             networkName: kube-system/ovs-vlan30
           name: ovs-bridge1
         - multus:
             networkName: kube-system/ovs-vlan40
           name: ovs-bridge2
         volumes:
         - dataVolume:
             name: systemdisk-bridge-ovs
           name: systemdisk-bridge-ovs
         - cloudInitNoCloud:
             networkData: |
               version: 2
               ethernets:
                 enp1s0:
                   dhcp4: true
                 enp2s0:
                   dhcp4: true
             userData: |
               #cloud-config
               ssh_pwauth: true
               disable_root: false
               chpasswd: {"list": "root:dangerous", expire: False}
               runcmd:
                 - sed -i "/#\?PermitRootLogin/s/^.*$/PermitRootLogin yes/g" /etc/ssh/sshd_config
           name: cloudinitdisk
